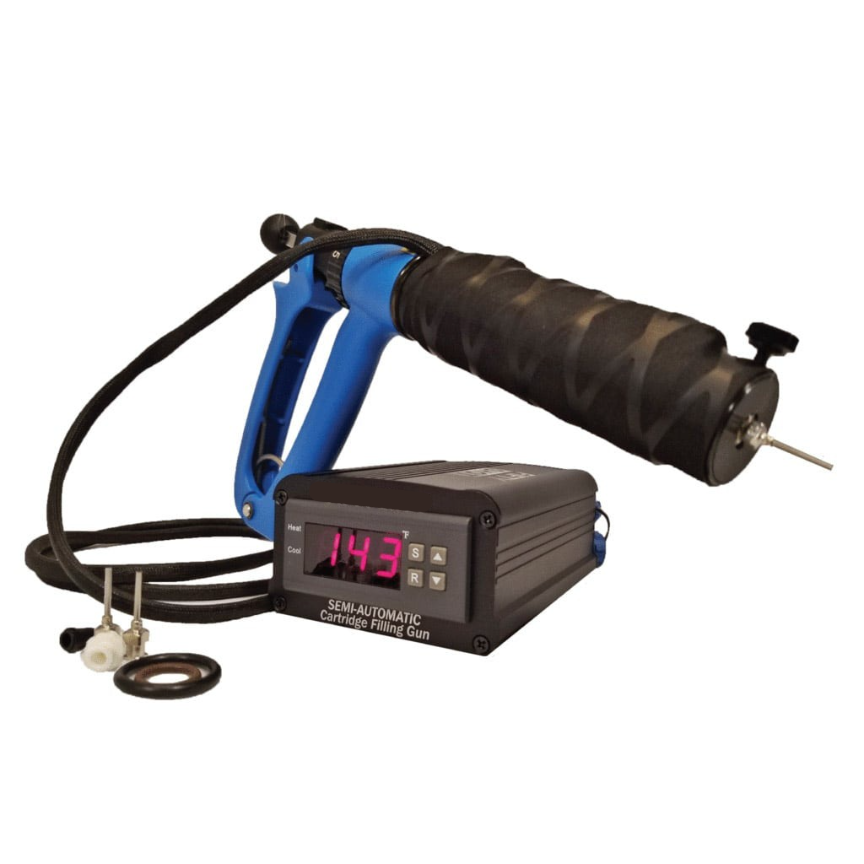

Filler can fill 50 (0.5ml) cartridges, disposable pens, or syringes in less than 5 minutes. With its revolutionary annular heat barrel, your oil will always be the exact temperature you want and will never run the risk of burning caused by direct contact with a heating coil.

The advanced digital temperature control unit is built out of durable and heat-dissipating aluminum to give you years of trouble-free use. The easy-to-program LED display allows you to set the exact temperature you want from room temperature to 194f. Data from the control unit is transmitted to the filler via a five-foot flexible noise-canceling silicone cord. Both the power and data cords are detachable for easy storage.

The filler is built of durable lightweight aluminum and hand contoured to allow pain-free high-volume use. Desired cartridge volume is adjusted using an easy-to-read dial in 0.5ml increments from 0.5ml – 2.5ml. Oil is precision dosed with a tolerance of less than 1%.

Now equipped with a V2 heating barrel with upgraded heat sensors and cord strain relief. The V2 Heat Barrel is also constructed of hardened aluminum and provides a 3mm annular air space surrounding the oil which gently heats your precious oil with a cushion of air. Only the original uses V2 True Temp sensors, noise-canceling wires, and built-in thermal fuses ensuring operator safety and precise oil temperature

FEATURES

• Precision Made Simple: Easy to read dial sets your volume in 0.5ml increments. Oil is dispensed with a slight (.125”) squeeze of the filler. Dosage is measured using a precision piston with a no-drip Luer lock tip to deliver precision every time, boasting a tolerance of less than 1%
• Temperature Control: The advanced digital control unit allows you to set the exact desired oil temperature from room temperature to 194 with only a 1° margin of error. Our revolutionary heat barrel is built with an annular air space surrounding the oil to reach and maintain temperature evenly and safely without burning the oil.
• Protect Your Product: The filler is built to protect your oil.

1. 1. The advanced control unit is designed never to exceed 194f to prevent user error from overheating the oil and burning off terpenes.
   2. Every machine has a built-in safety mechanism that will shut off all heat if the oil ever reaches 212f (100c).
   3. The Heat Barrel is designed with an annular air space surrounding the oil barrel to gently heat and maintain oil temperatures with a cushion of air. The oil never comes in contact with any heating elements, which can burn the oil.

• Efficiency: The machine can fill up to 100 (0.5ml) units in just 5 minutes and change oils in 60 seconds!
• Flexibility: The machine is mobile. The power and data cords disconnect from the control unit, allowing you to safely pack your machine in a bag without risking bending and breaking wires.
• Easy Peezy Fill & Squeezy: The machine is designed to be as user-friendly as possible.

1. 1. Preheat: Preheat oil to the desired temperature.
   2. Fill machine: Either by drawing back the piston or top filling.
   3. Set Filler: Via easy-to-read LED screen and dial, set your temperature and cart size.
   4. Fill Carts: With a tiny .125” squeeze, you’ve filled a unit.

• Quality: Our engineers had you in mind when designing this filler. Only high-quality parts and materials were chosen to give you years of safe and efficient use.

INCLUDES

• (1) Control Unit
• (1) Semi-Automatic Cartridge Filler (25ml)
• (1) 25ml Oil Barrel w/Gasket
• (1) Heat Barrel
• (5) 14g., 15g., 16g., 17g., 18g One of each All Metal Luer Lock Fill Needle
• (1) Luer Lock to Luer Lock coupler for syringe filling
• (1) Luer Lock Cap
• (1) Spare Viton Plunger Oring
• (1) Oil Barrel Oring
• (1) Instruction Manual
• One Year Warranty

SPECS

• Filler
  • Capacity: 25ml
  • Step Increments: 0.5ml., 1.0ml., 1.5ml., 2.0ml., 2.5ml.
  • Tolerance: <1%
  • Temp Range: Room Temp - 194f
  • Emergency Shut Off: 212f (resettable)
  • Luer Lock Tip
• Heat Barrel
  • Hardened Aluminum
  • Easy Connect: 1/4 turn finger screw
  • Heater: 35w
  • Silicone Cover
• Control Unit
  • Aluminum
  • All cords detachable
  • Max 150W heater load
  • 110v (will not work with 220v unless a transformer-type voltage converter is used)
  • 2 AMP Fuse
• Power Cord (wall to control unit)

  • Standard detachable power cord (typically 5’ in length)
  • Detachable
  • Grounded 3 Prong
• V2 Head Connection Cord (control unit to filler)

  • (07/1/2020) Upgraded with higher quality heat sensors and cord strain relief.
  • Extremely flexible 5’ length
  • Detachable at control unit using watertight industrial connector plug
  • Silicone noise canceling
